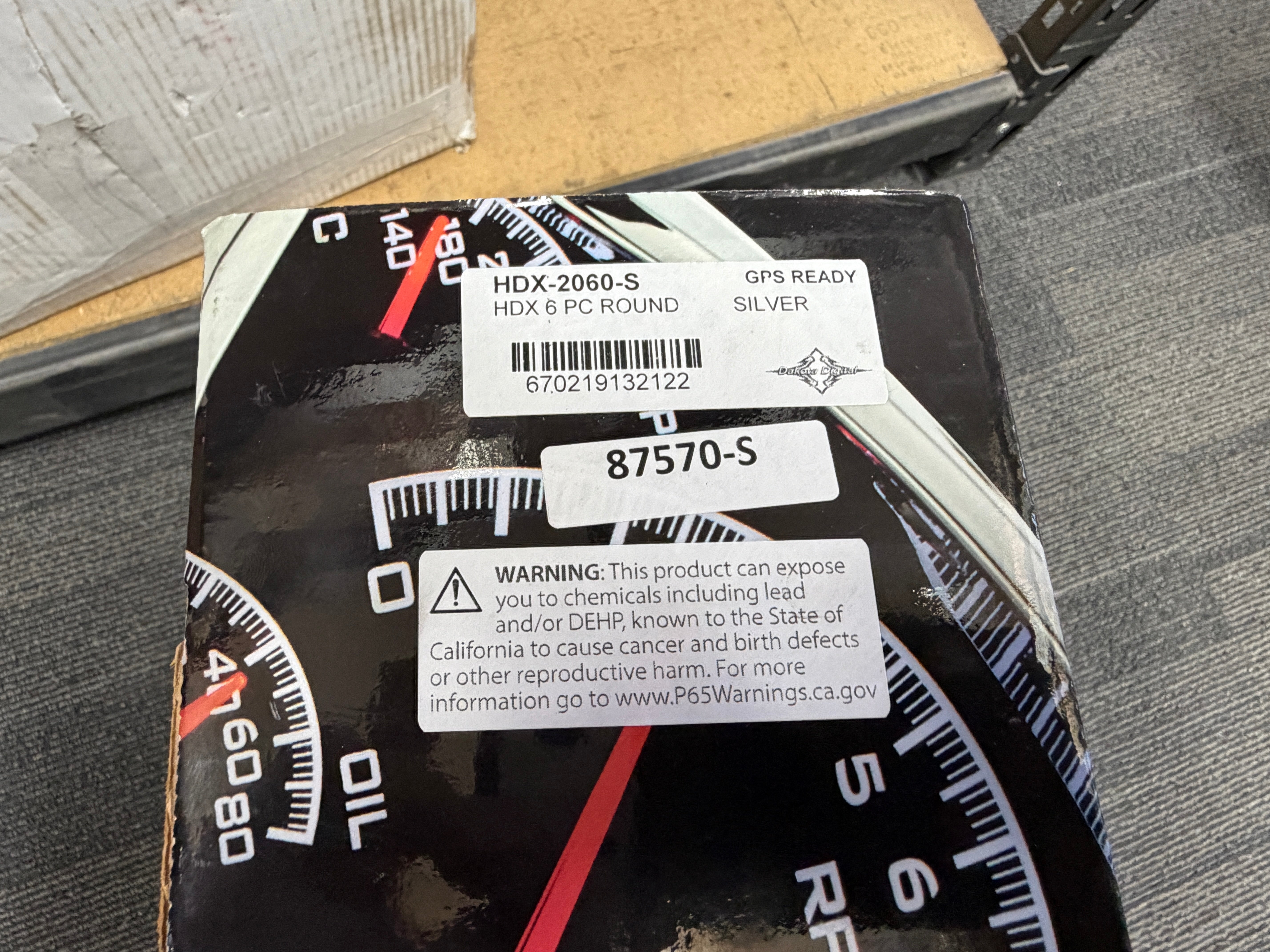

Clearance – Dakota Digital HDX-2060-S Universal 6-Gauge Round System (Silver)

Clearance item – brand new in box. This is a Dakota Digital HDX-2060-S universal 6-gauge round system with a silver alloy background. It gives you modern HDX technology in a clean, round-gauge layout that drops into custom panels, aftermarket dashes, or modified factory clusters.

What it is

The HDX-2060-S is a six-piece analog gauge set with a full-color TFT message center. You get everything you need to monitor speed, RPM, oil pressure, water temperature, fuel level and system voltage, plus a digital center that can display additional vehicle data and performance info.

Key features

• Universal 6-gauge round HDX system – analog needles with digital TFT message center
• Silver alloy gauge faces with chrome-style bezels
• User-selectable illumination: independently set colors for needles, sweeps and message center
• Integrated indicators for turn signals, high beam, check engine, parking brake, cruise and more
• Over 30 color options and multiple preset themes, plus full custom color control
• Capacitive-touch buttons on the face or Bluetooth app (iOS/Android) for setup and calibration

Cutout & mounting

• Large gauges fit 3 3/8" panel cutouts (approx. 3.55" overall diameter)
• Small gauges fit 2 1/16" panel cutouts (approx. 2.225" overall diameter)
• Requires roughly 2" of depth behind the dash panel
• Includes machined mounting cups and hardware for clean, secure installation

Included components

• HDX-2060-S six-gauge round assembly with TFT message center
• Main control box
• Main wiring harness and interconnect harness
• Water temperature sensor and harness
• Oil pressure sensor and harness
• Speed sensor / generator for cable-drive applications
• Assorted thread adapters and bushings
• Installation manuals and documentation

Fesler clearance notes

• Clearance item – new, unused kit
• Box shows light shelf/handling wear from storage, but contents are new
• Marked as GPS ready – works with Dakota Digital GPS speed modules (sold separately)
• Professional installation is recommended, especially on custom dash panels
