Dakota Digital GRFX-47C-PU - 1947-1953 Chevy/GMC Pickup GRFX Instrument System
Dakota Digital GRFX-47C-PU - 1947-1953 Chevy/GMC Pickup - Direct-Fit GRFX Instrument System - Full-Color TFT Displays - Sold by Fesler USA
In Stock & Shipping Now. Stocked and shipped from the Fesler USA shop in Phoenix, Arizona. SKU: GRFX-47C-PU.

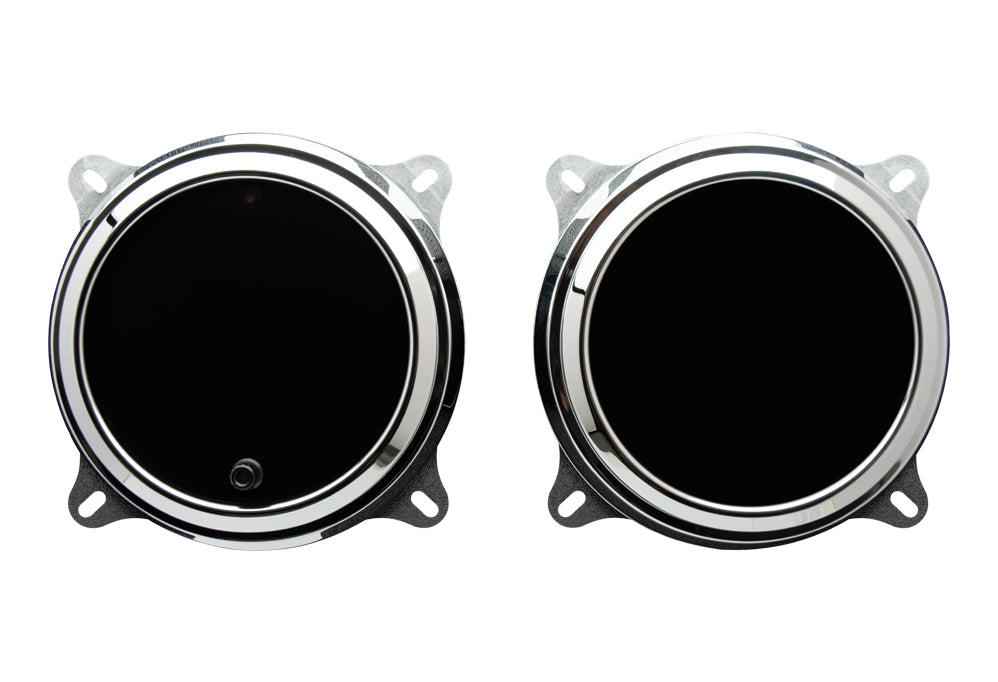

Direct fit for 1947, 1948, 1949, 1950, 1951, 1952, and 1953 Chevy/GMC Pickup . Uses the stock or reproduction Chevy/GMC Pickup dash bezel (not included). The GRFX-47C-PU includes chromed machined aluminum bezels.
The Dakota Digital GRFX-47C-PU is a direct-fit GRFX instrument system for the 1947-1953 Chevy/GMC Pickup. It replaces the factory gauge cluster with full-color TFT displays, multiple graphic themes, and total customization of every gauge readout. Control box, wiring, and sending units are all included. Fesler has proudly stocked and sold Dakota Digital products for years. This is the gauge system your build deserves.
FULL-COLOR TFT DISPLAYS. MULTIPLE THEMES. TOTAL CUSTOMIZATION.
GPS SPEEDOMETER. BLUETOOTH APP. BACKUP CAMERA READY.
BUILT BY DAKOTA DIGITAL. SOLD BY FESLER.
Why builders choose Dakota Digital GRFX
- Direct-fit for the Chevy/GMC Pickup dash: No cutting, no adapters. The GRFX-47C-PU drops into the stock or reproduction bezel for a factory-correct look with modern performance.
- Full-color TFT displays: High-brightness screens replace traditional analog needles with configurable digital readouts. Choose analog-style, digital numeric, or bar-graph display modes for each gauge.
- Full gauge suite: Speedometer, tachometer, oil pressure, water temperature, voltmeter, and fuel level. Everything you need on one cluster.
- Four graphic themes: Standard, Performance, Modern, and Era. Each theme offers multiple color schemes, and every element can be further personalized with unique display colors and warning modes.
- Onboard GPS speedometer calibration: Automatic speedometer calibration regardless of tire size or gearing. No manual calibration required for the speedometer.
- Built-in Bluetooth: Connect wirelessly to the Dakota Digital app on your smartphone or tablet. Configure, calibrate, customize, and view real-time gauge data from your device.

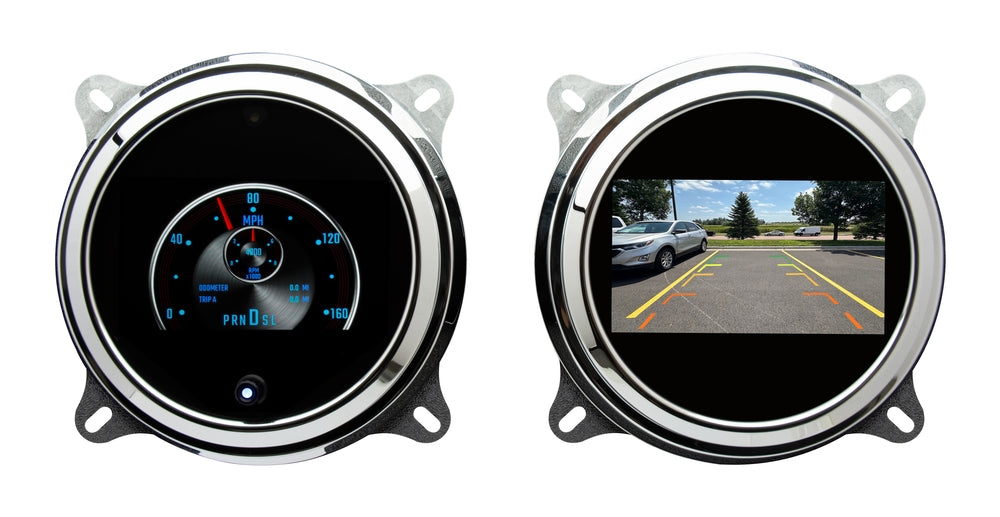

- Backup camera ready: Integrated reverse backup video display uses the largest onboard TFT screen. Add a Dakota Digital camera (sold separately) for visibility while backing.
- G-force meter: Integrated real-time G-force display shows acceleration, braking, and cornering forces.
- USB updates: USB access port allows field updates, new graphic theme imports, and future feature enhancements.
- Complete system: Control box, wiring harness, sending units, water temperature probe, oil pressure transducer, and speedometer pulse generator are all included.
What's included
- One (1) GRFX direct-fit instrument cluster (GRFX-47C-PU)
- External control module
- Wiring harness
- Water temperature probe (1/8" NPT, ground isolated, 10 ft harness)
- Oil pressure transducer (1/8" NPT solid state, 10 ft harness)
- Speedometer pulse generator (cable-driven, GM-style, 10 ft harness)
- Bushing kit (1/8" to 1/4", 3/8", 1/2" NPT, 12mm and 16mm x 1.5)
- Rocker switch for pushbutton control
Not included: Dash bezel and trim. Uses the stock or reproduction Chevy/GMC Pickup dash bezel (not included). The GRFX-47C-PU includes chromed machined aluminum bezels. Confirm your dash style before ordering.
Bezel and trim are not included.
This gauge system installs into the stock or reproduction 1947-1953 Chevy/GMC Pickup dash bezel. Confirm your dash style and bezel condition before ordering. If you are running a modified or aftermarket dash, verify the opening dimensions to ensure proper fit.

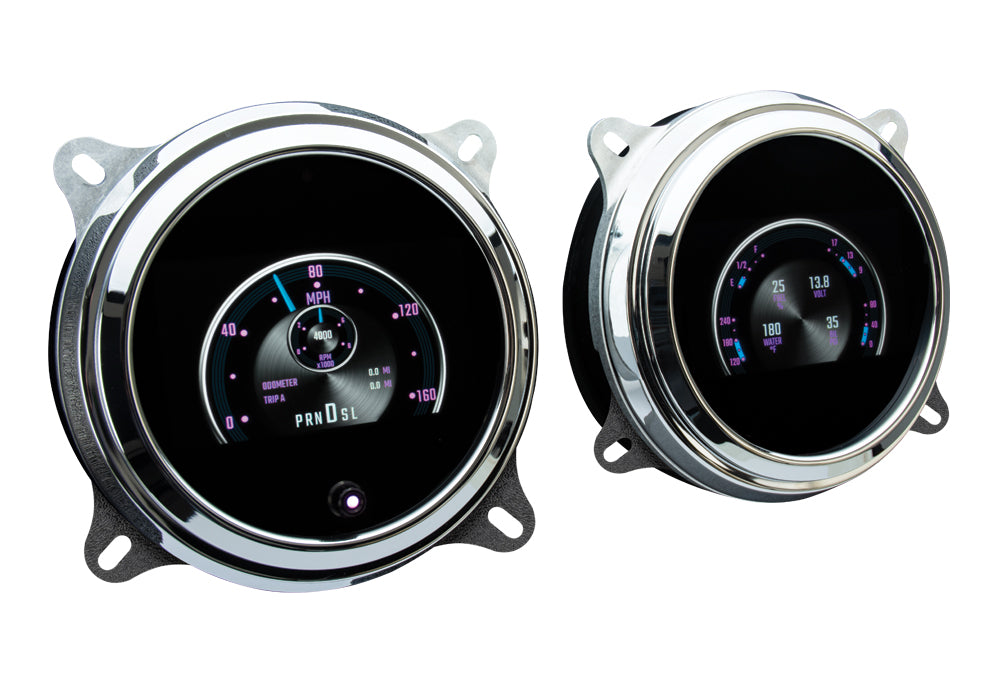

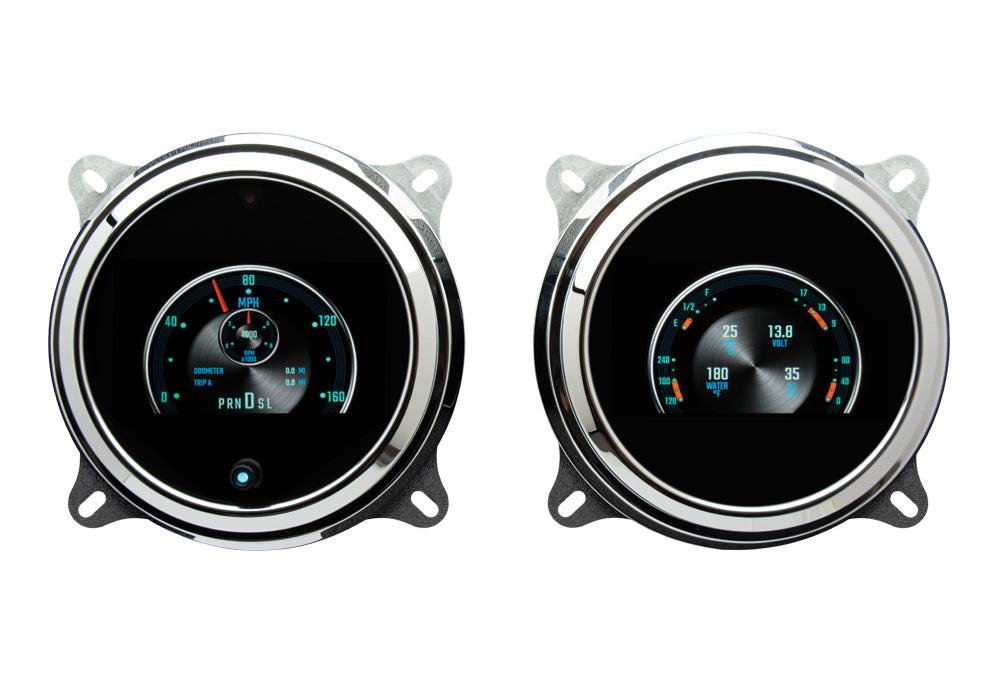

Gauge layout
Graphic themes and customization
The GRFX system features four factory graphic themes with multiple color schemes each. Every element within each theme can be further personalized.
Over 30 user-selectable color options allow independent control of needle color, sweep color, and digital display color. Full RGB backlighting with separate daytime and nighttime themes. Internal photo sensor automatically adjusts brightness based on ambient light.
Digital message centers
- Standard displays: Odometer (one-time user settable, million mile), dual trip meter, digital clock, estimated range / miles to empty, hour meter.
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall.
- Built-in indicators: Turn signals (left/right), high beam, check engine, parking brake, cruise control, gear position (optional GSS-3000 sensor required), 4x4, wait to start, two auxiliary inputs with user-programmable labels.
Fitment
- Primary application: 1947, 1948, 1949, 1950, 1951, 1952, and 1953 Chevy/GMC Pickup .
- Bezel: Uses the stock or reproduction Chevy/GMC Pickup dash bezel (not included). The GRFX-47C-PU includes chromed machined aluminum bezels.
- Speed signal: Supports OEM VSS, pulse generator, or GPS-based automatic calibration.
Confirm your dash style before ordering.
This system is designed for the stock 1947-1953 Chevy/GMC Pickup dash layout. If your dash has been modified or you are running an aftermarket bezel, verify the opening dimensions before purchasing. Contact Fesler if you are unsure about your application.
Installation
- Direct fit: The GRFX cluster drops into the stock or reproduction bezel. No cutting or adapters required.
- Wiring: External control module and wiring harness are included. Route and connect per the Dakota Digital instructions. The external module keeps wiring clean and reduces clutter behind the cluster.
- Sending units: Water temperature probe, oil pressure transducer, and speedometer pulse generator are included with full-length harnesses and bushing kits.
- Calibration: Push-button calibration via the built-in rotary encoder or the Dakota Digital Bluetooth app. GPS-based speedometer calibration is automatic.
- Skill level: Intermediate. Professional installation recommended for wiring, sender installation, and calibration.
Shipping
- Ships standard ground from the Fesler USA shop in Phoenix, Arizona.
- All components are packaged to withstand transit without damage.
- Lead time may apply. Dakota Digital GRFX systems are built to order and may have extended lead times. Contact us before ordering if your build has a hard deadline.
Frequently asked questions
Does this include the dash bezel?
No. The GRFX system installs into the stock or reproduction 1947-1953 Chevy/GMC Pickup dash bezel, which is not included. Confirm your bezel condition and style before ordering.
What is the difference between GRFX and VHX/HDX/RTX?
The GRFX series uses full-color TFT screens instead of traditional analog needles. It is the most advanced and customizable system Dakota Digital offers. VHX uses analog needles with hidden message centers. HDX uses analog needles with a full TFT message center. RTX replicates the factory gauge face with modern electronics behind it. GRFX replaces everything with configurable digital displays.
What gauges are included?
The cluster includes a speedometer, tachometer, oil pressure, water temperature, voltmeter, fuel level gauge, and clock. Each gauge can be displayed as analog-style, digital numeric, or bar-graph readout.
Can I change the display colors?
Yes. The GRFX system offers over 30 user-selectable color options with full RGB backlighting. You can independently change needle color, sweep color, and digital display color. Four graphic themes (Standard, Performance, Modern, Era) provide preset layouts, and each can be further customized.
Can I add a backup camera?
Yes. The GRFX system has a built-in reverse backup video display that uses the largest onboard TFT screen. Dakota Digital offers the CAM-1000 (surface mount) and CAM-2000 (flush mount) backup cameras, each sold separately with a 29-foot cable harness.
Are sending units included?
Yes. The kit includes a water temperature probe, oil pressure transducer, and speedometer pulse generator, each with full-length harnesses and bushing kits for common thread sizes.
Do I need a laptop to calibrate the gauges?
No. The GRFX system can be calibrated using the built-in rotary encoder (push/rotate control on the gauge face) or the free Dakota Digital Bluetooth app on your smartphone or tablet. GPS-based speedometer calibration is automatic.
Why Fesler stocks Dakota Digital. Dakota Digital builds vehicle-specific and universal gauge systems known for clear visibility, reliable electronics, and straightforward installation. Engineered and produced in Sioux Falls, South Dakota, all Dakota Digital instrument systems carry a Limited Lifetime Warranty. Fesler has proudly offered Dakota Digital products for years and stocks platform-specific solutions so you can complete your dash with confidence.
Build the complete interior.
Dakota Digital gauges. Fesler door panels. Kick panels. Center console. A-pillar panels. Billet handles. Every piece designed to work together, built and shipped from Phoenix. Browse all Fesler interior parts.
Questions about fitment, graphic themes, bezel compatibility, or installation? Contact Fesler USA. We will help you plan it right.
