HDXF-2024FB DAKOTA DIGITAL GAUGES
Dakota Digital HDX Six-Gauge Package — Fesler Exclusive Black Anodized Bezels — TFT Display — Bluetooth — Universal Fit
THIS PRODUCT IS UNIQUE TO FESLER. BLACK ANODIZED BEZELS ARE NOT AVAILABLE THROUGH ANY OTHER OUTLET.
In Stock & Shipping Now. Ships direct from our Phoenix shop.

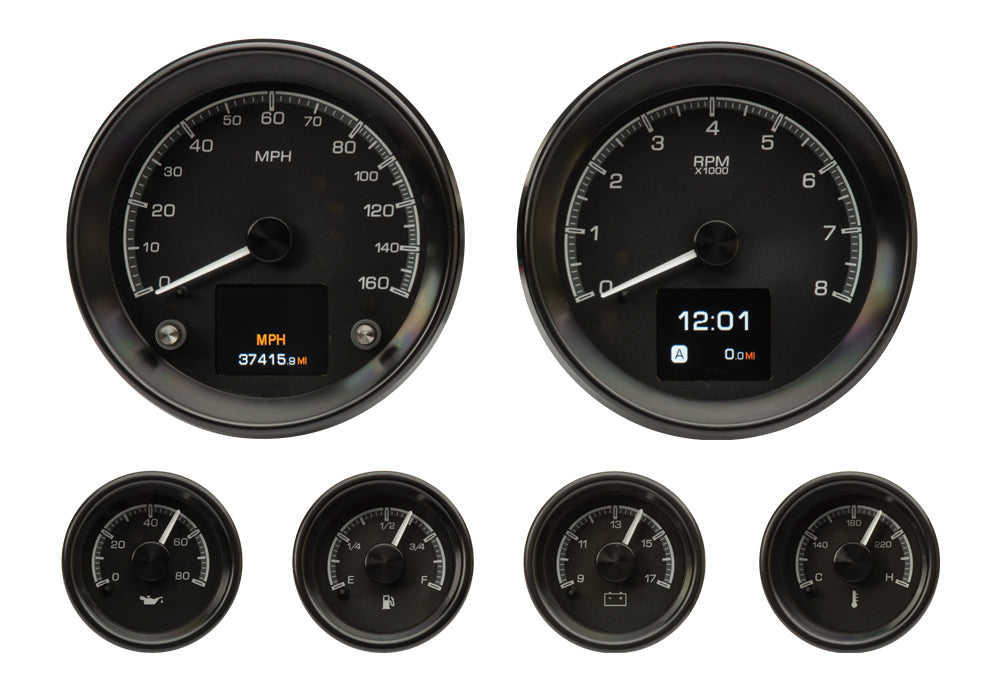

The Fesler x Dakota Digital HDX six-gauge package is the only HDX system on the market wearing black anodized billet aluminum bezels. Sized to drop into common aftermarket dash openings measuring 4-5/8" and 2-1/16" diameter, these instruments install from the front of the dash with no special tooling. 30 backlighting colors. TFT displays. Bluetooth control via Apple and Android. The fool-proof Dakota Digital HDX control box makes this one of the cleanest gauge installs you can do on a custom build. And the only place you can get them in black is here.
BLACK ANODIZED BILLET BEZELS. FESLER EXCLUSIVE. NOT AVAILABLE ANYWHERE ELSE.
Why builders choose the Fesler x Dakota Digital HDX package

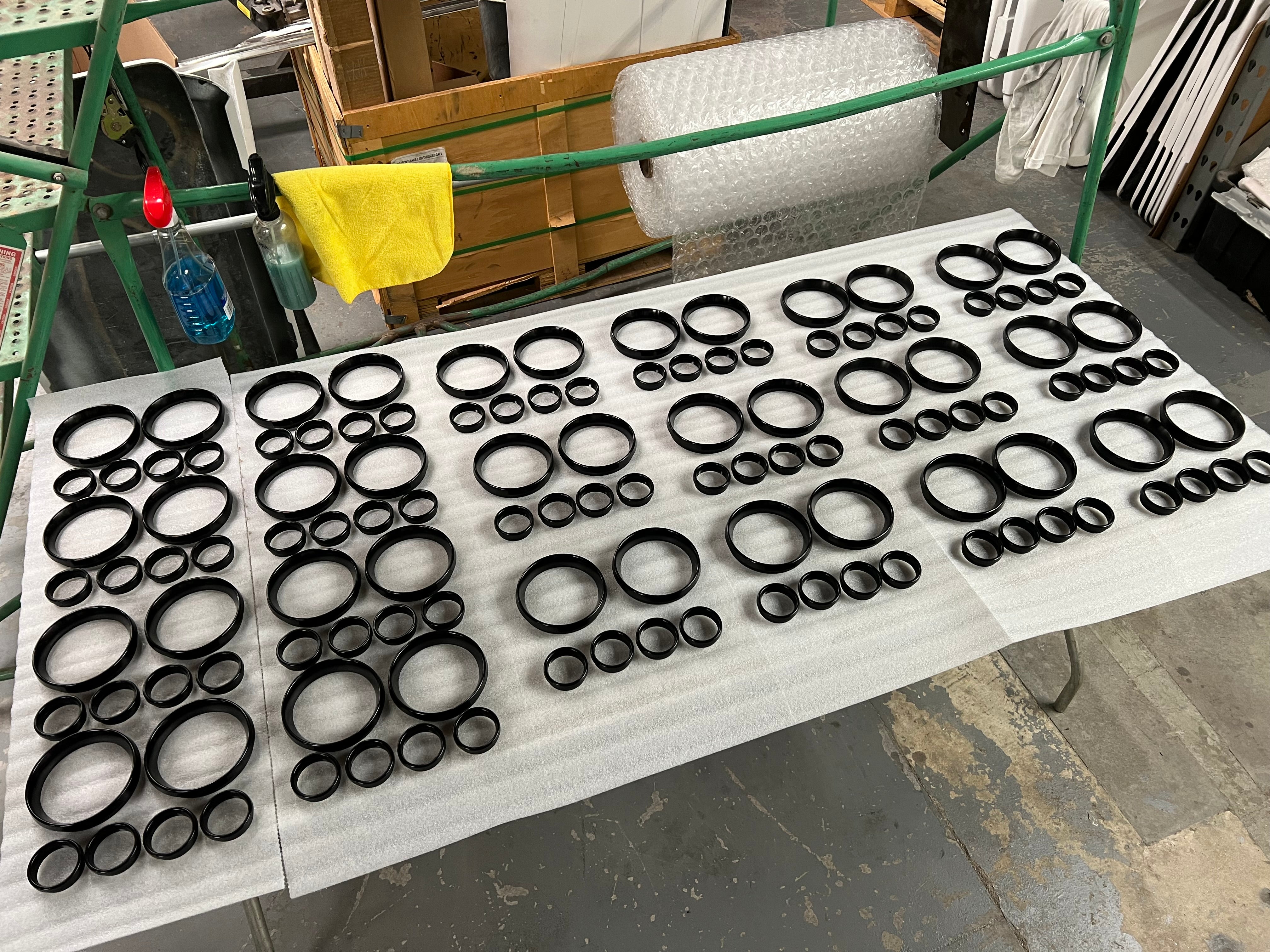

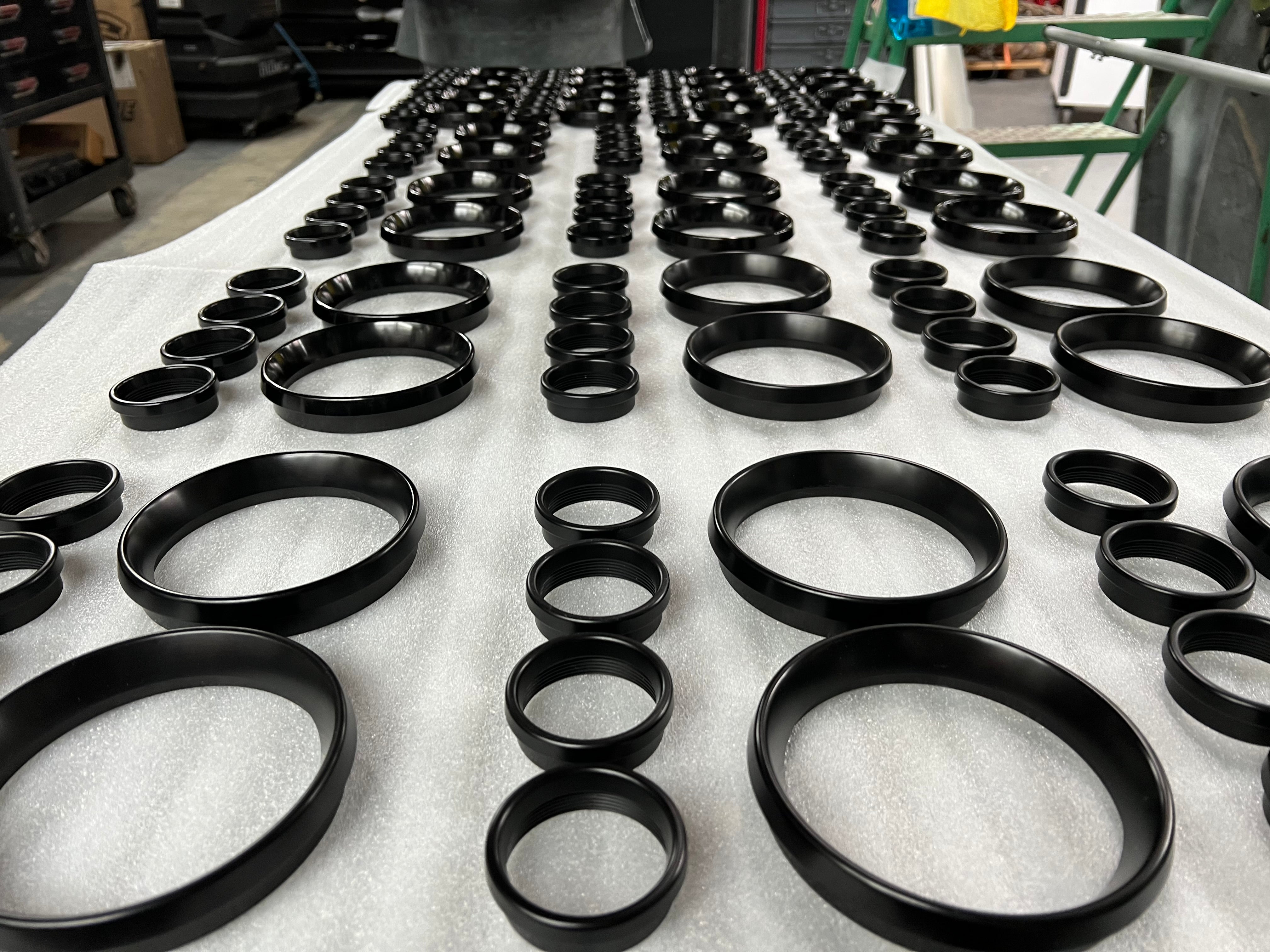

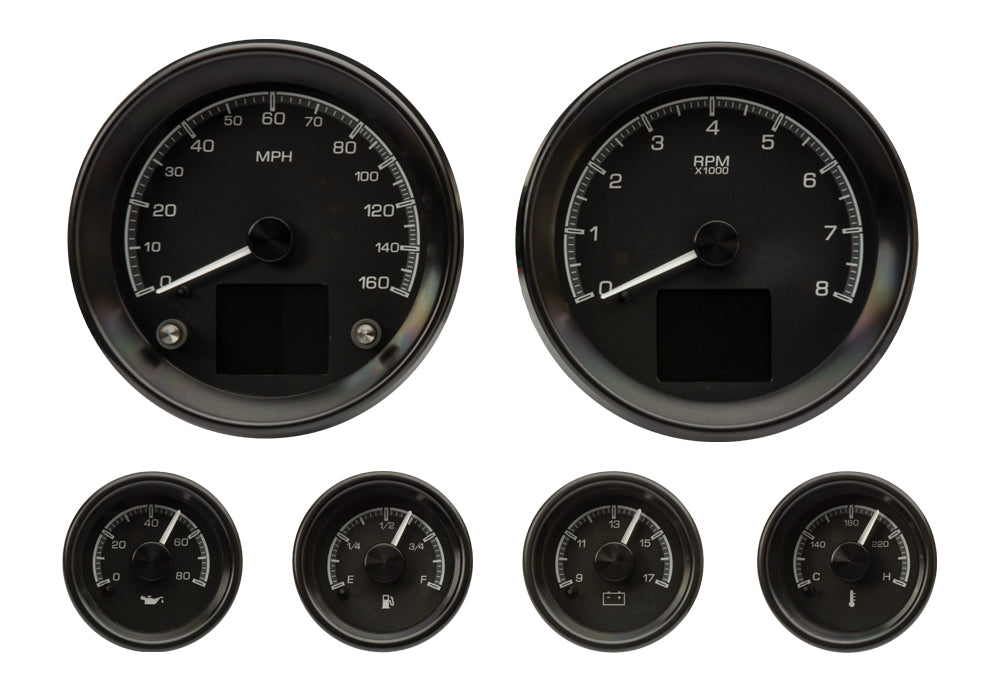

- Fesler exclusive black anodized bezels: The billet aluminum housings are black anodized to Fesler's spec. No other dealer offers this finish. Silver alloy face styling is also available if that fits your build better.
- TFT display technology: Full-color, high-contrast TFT displays on every gauge. Crisp in direct sunlight. Clean at night.

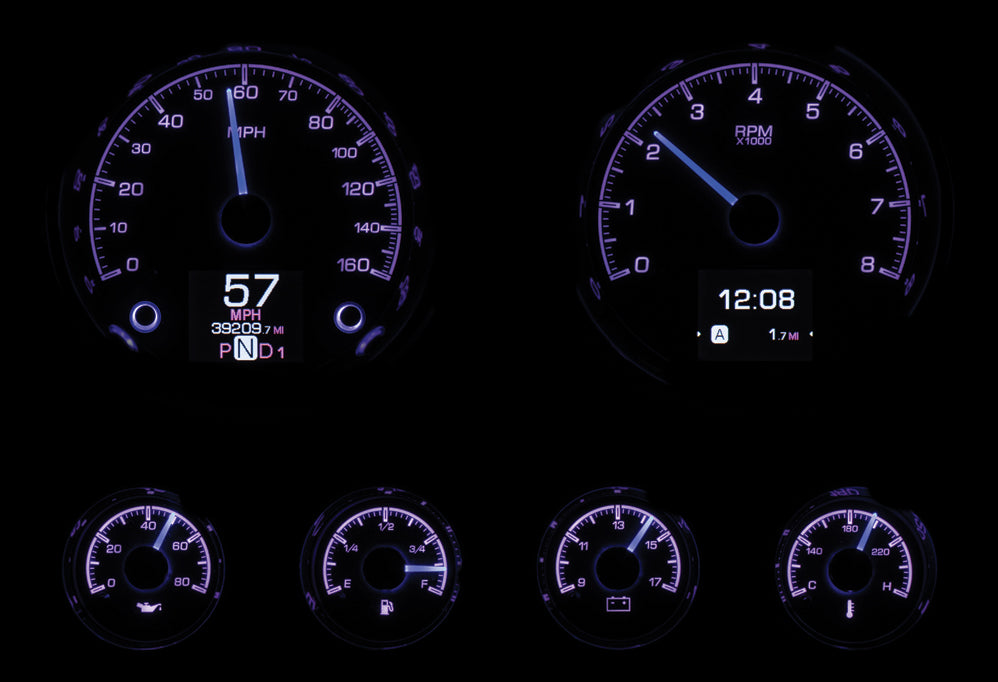

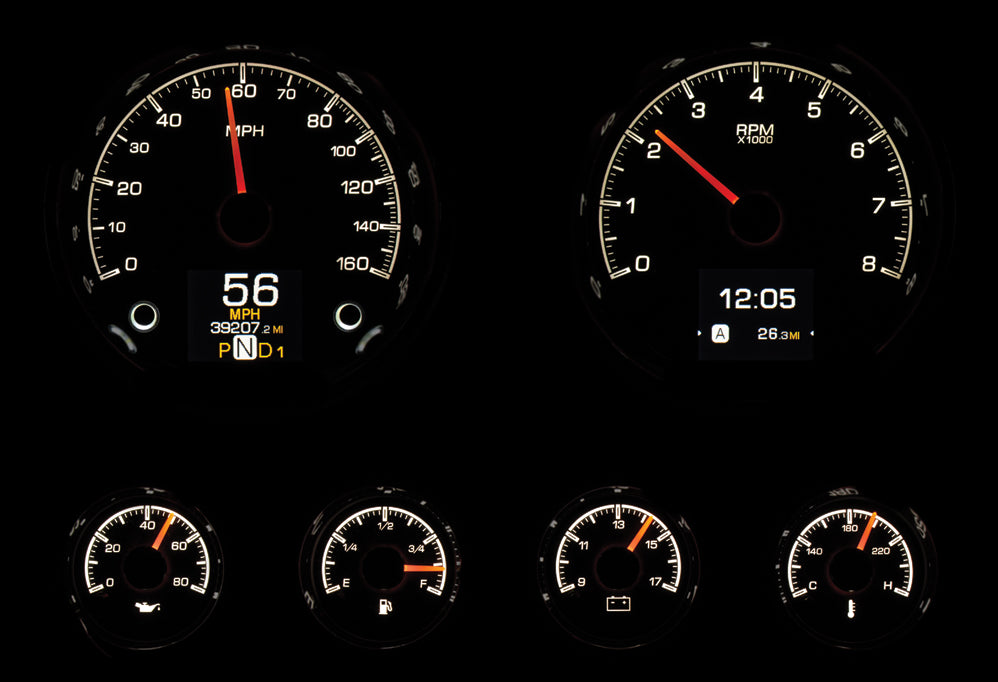

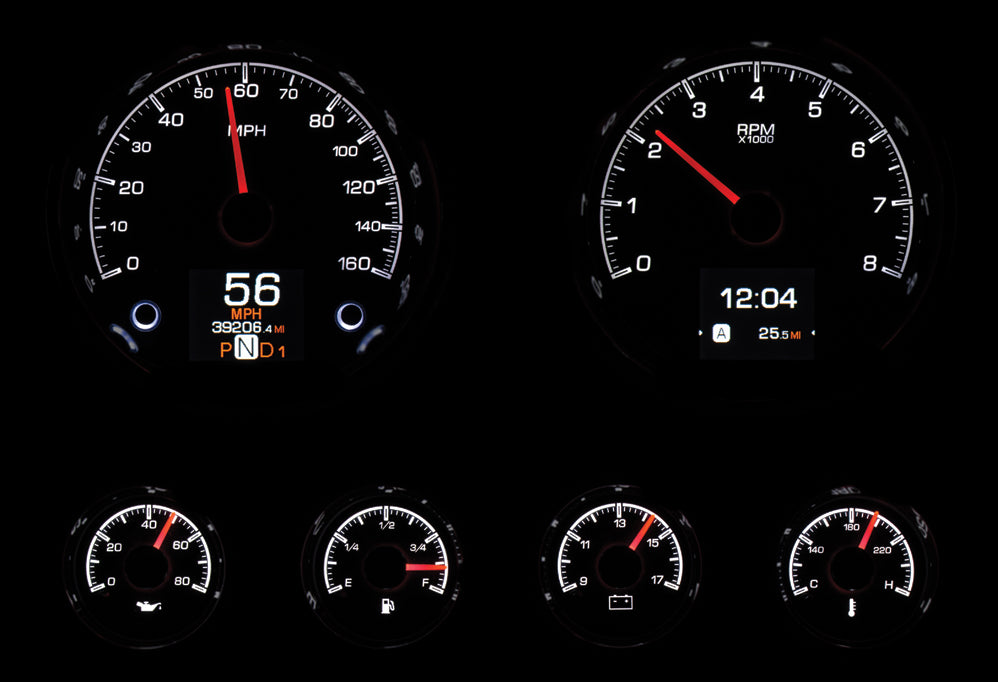

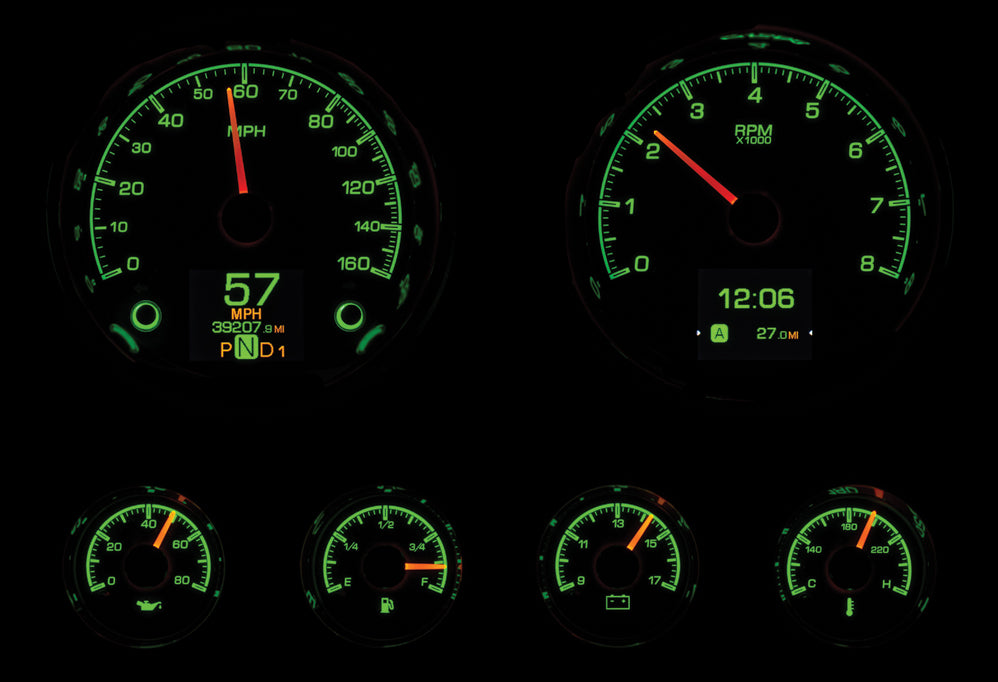

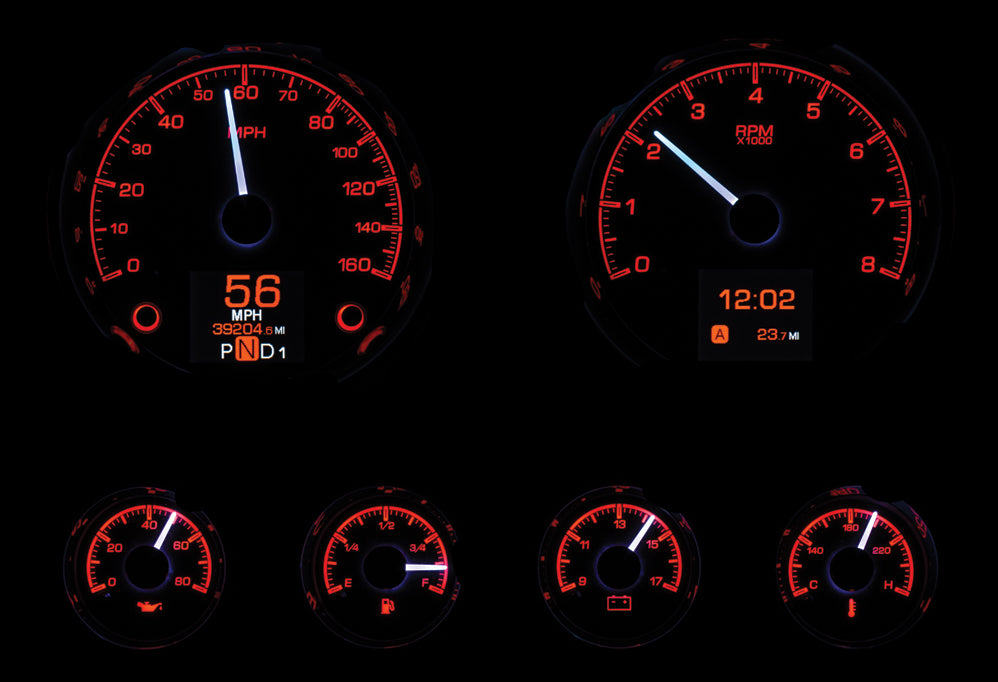

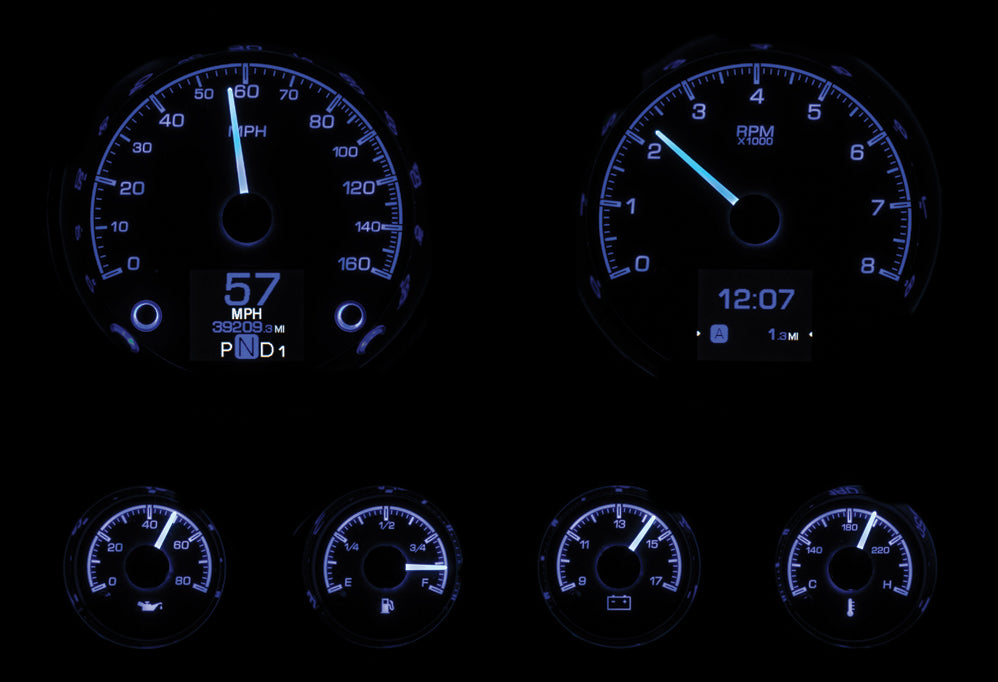

- 30 backlighting colors: Select independent illumination colors for gauge readings, needles, and message centers. Match your interior or run whatever looks right to you.
- Bluetooth app control: Calibrate and adjust settings from your phone. Compatible with Apple and Android devices.
- Dead-faced indicators: Turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators built in. Clean face, no exposed idiot lights.
- Front-mount install: Instruments drop in from the front of the dash. No rear access required during install.
- Simplified wiring: Central control box uses vehicle-harness sourced signals. Supplied solid-state sending units connect cleanly to their respective terminals.
Specs and dimensions
Confirm your dash opening dimensions before ordering. These gauges are sized for common aftermarket openings. If you are running a Fesler dash overlay, this gauge package is designed to be a compatible upgrade. Contact us if you need help confirming fitment.
Display and control features
Dead-faced indicators included:
Turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators. All built into the gauge faces. No external warning light pods required.
Fitment
This is a universal gauge package sized for common aftermarket dash openings. It is not vehicle-specific. It fits any dash, custom panel, or Fesler fiberglass dash overlay with a 4-5/8" opening for the main gauges and 2-1/16" openings for the four satellites.
Pairs directly with Fesler dash overlays for the 1969 Camaro, 1970–1981 Camaro, and 1967–1972 C-10. If you are buying a Fesler dash overlay, this gauge package is the intended upgrade path. Select the bundle from the drop-down on the dash product page for discounted bundle pricing.
Installation
- Install method: Instruments drop in from the front of the dash. No rear access required.
- Wiring: Central control box uses vehicle-harness sourced signals. Solid-state sending units connect cleanly to labeled terminals. One of the simpler wiring jobs in the Dakota Digital lineup.
- Calibration: Use the built-in capacitive-touch buttons on the gauge face or connect via the Bluetooth app on your phone.
- Professional installation recommended for wiring, sending unit placement, and final calibration.
Frequently asked questions
Why can I only get black bezels from Fesler?
The black anodized billet aluminum bezels are a Fesler-exclusive finish. Dakota Digital produces the HDX system; Fesler spec'd and commissioned the black anodized housing as an exclusive offering. No other dealer sells the HDX in this finish.
What dash opening size do I need?
The main gauges (speed and tach) require a 4-5/8" diameter opening. The four satellite gauges require 2-1/16" diameter openings. All six instruments require approximately 2-1/4" of depth behind the dash panel. Front bezel O.D. is 5" on the main gauges and 2-5/16" on the satellites.
Does this work with Fesler dash overlays?
Yes. This gauge package is the intended upgrade for Fesler fiberglass dash overlays. If you are purchasing a Fesler dash for the 1969 Camaro, 1970–1981 Camaro, or 1967–1972 C-10, select this gauge package from the drop-down on the dash product page to receive discounted bundle pricing.
How do I change backlighting colors?

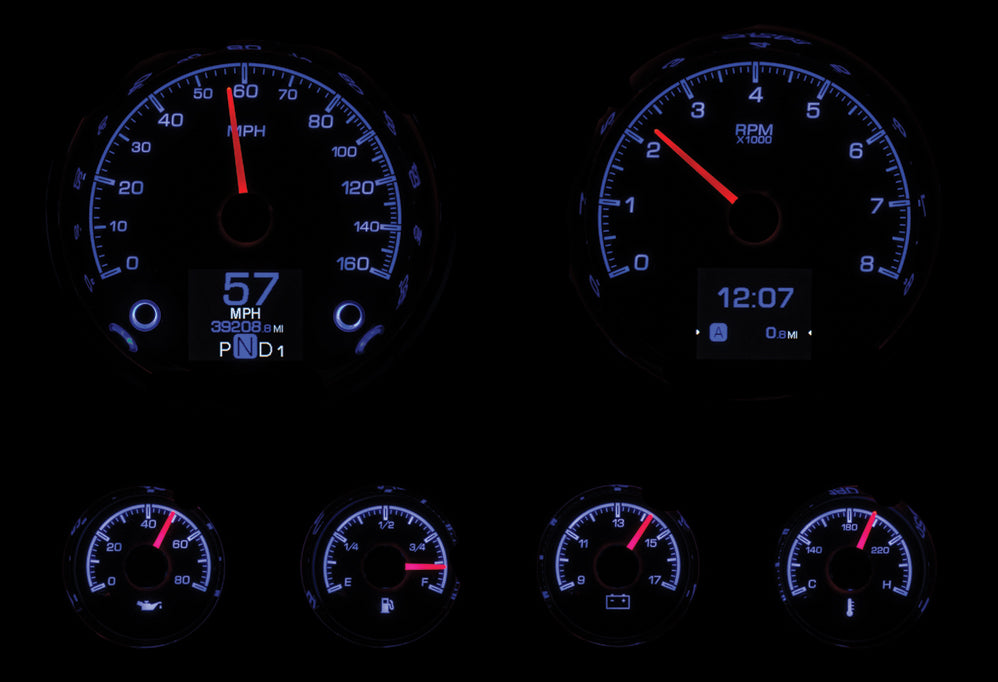

You can adjust backlighting colors, needle colors, and message center illumination independently using the built-in capacitive-touch buttons on the gauge face, or through the Dakota Digital Bluetooth app available for Apple and Android devices.
What warning indicators are built in?
The HDX system includes dead-faced indicators for turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators. Each gauge also has a red settable warning light. All indicators are built into the gauge faces. No external warning light pods are required.
Are sending units included?
Yes. Solid-state sending units are supplied and connect cleanly to their respective labeled terminals on the central control box. The system is designed to use vehicle-harness sourced signals wherever possible, which simplifies the overall wiring significantly.
Pair these gauges with a Fesler dash overlay.
The HDX package is designed to work directly with Fesler fiberglass dashes for the Camaro and C-10. Buy them together on the dash product page for discounted bundle pricing. Browse Fesler dash overlays.
Questions about gauge fitment, dash compatibility, or bundle pricing? Contact Fesler USA. We will help you plan it right.
